Remove right luggage compartment wheel arch trim panel (all equipment versions)

Preliminary work

• Refer to REMOVING THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to REMOVING RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING REAR ENTRANCE COVER STRIP .
• Refer to REMOVING RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .

Removing the luggage compartment wheel arch trim panel on left (all equipment versions)

Removing the left luggage compartment wheel arch trim panel (without third-row seating)

• Only for equipment specification without electrical roller cover for luggage compartment:

  Loosen expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

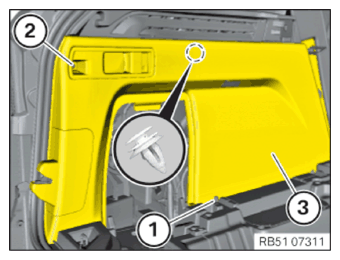

• Loosen expanding rivet (1).
• Remove the cover (2) and release the underlying bolt.
• Release the luggage compartment wheel arch trim panel (3) from the clip in the upper area.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:
• Unlock available plug connections and disconnect.
• Detach the Bowden cable (1) on the luggage compartment wheel arch trim panel (2).
• Feed out and remove the luggage compartment wheel arch trim panel (2) toward the rear at the trunk lid lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:
• Unlock available plug connections and disconnect.
• Detach the Bowden cable (1) on the luggage compartment wheel arch trim panel (2).
• Feed out and remove the luggage compartment wheel arch trim panel (2) toward the rear at the trunk lid lock.

  Courtesy of BMW OF NORTH AMERICA, INC.
