Installing the head-up display
- Connect the associated connector with the head-up display (2) .
- Guide the Head-Up Display (2) into the support.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Head-Up Display to support | ||
|---|---|---|
| M6x25 screw | Tightening torque | 4.5 Nm |
- Correctly position support for the dashboard.
- Install the nuts (1) and (2) and tighten.
TIGHTENING TORQUE SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
- Install the retainer on the left and right and tighten the nuts (1) .
TIGHTENING TORQUE SPECIFICATION
| Support for dashboard on bottom | ||
|---|---|---|
| Nut M8 | tightening torque | 19 Nm |
- Tighten nuts (2) .
TIGHTENING TORQUE SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
- Tighten nuts (1) .
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
Securing the steering shaft, bottom, to the steering column
NOTE:
TECHNICAL INFORMATION
The steering shaft and the steering column are not encoded to each other. At the time of removal, installation and replacement, mark the positioning of the steering shaft in relation to the steering column. Non-compliance will lead to inclination of the steering wheel.
The steering shaft and the steering column are not encoded to each other. At the time of removal, installation and replacement, mark the positioning of the steering shaft in relation to the steering column. Non-compliance will lead to inclination of the steering wheel.

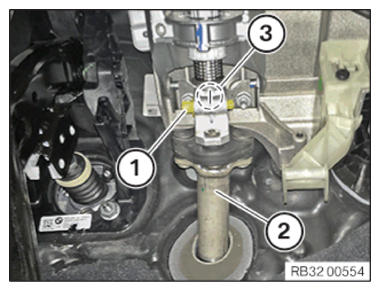

- Align the bottom steering shaft (2) to the steering column using the mark (3) that was made during the removal.
- Slide the bottom steering shaft (2) onto the steering column.
- Replace the clamping bolt (1)
.
Parts: Clamping bolt
- Tighten the clamping bolt (1) .
TIGHTENING TORQUE SPECIFICATION
| Lower steering shaft to steering column | ||
|---|---|---|
| M8 Recut screw thread. Replace clamping bolt. No retorque permitted! |
tightening torque | 28 Nm |
- Push the refrigerant line (1) to one side.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATION
| Support for dashboard | ||
|---|---|---|
| Nut M8 | tightening torque | 21 Nm |
| M8 screw | tightening torque | 21 Nm |
| Nut M6 | tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING DASHBOARD TRIM .
- Refer to INSTALLING THE MID-RANGE SPEAKERS IN THE DASHBOARD .
- Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to INSTALLING THE HEAD UNIT HIGH (HU-H) (WITH BRACKET) .
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to REMOVING THE DECORATIVE STRIP FROM THE LEFT AND RIGHT DASHBOARD .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
- Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE CENTER STACK MODULE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
- Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to CONNECTING THE REFRIGERANT LINE TO THE EXPANSION VALVE .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to ATTACHING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING THE HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
