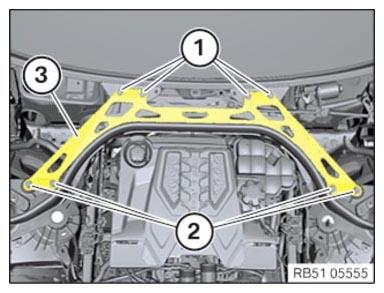

Install tension strut on shock tower

• Install the tension strut (3) on the shock tower.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Tension strut on firewall
M10x25 screw	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Tension strut to shock tower
screw Replace screws.	Joining torque	56 Nm
	Angle of rotation	90°
