Install inside right door sill cover strip

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the inner door sill cover strip

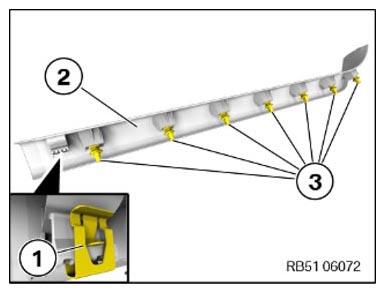

Remove the clamp (1) from the body and attach it on the inner door sill cover strip (2).
Check the clips (3) and the clamp (1) for damage; replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

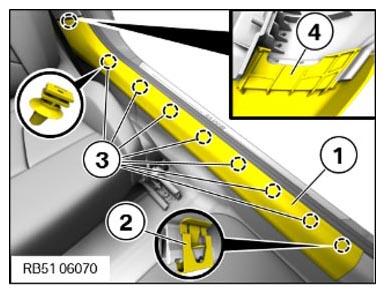

Guide the inner door sill cover strip (1) into the lug (4) and into the edge protection seal.
Clip in the door sill cover strip (1) with the clamp (2) and the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.
