Remove the rear carpet
Preliminary work
- Refer to REMOVING BOTH FRONT SEATS .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING CENTER ARMREST .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE CENTER STACK MODULE .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING THE SPEAKER TRIM ON THE LEFT AND RIGHT CENTER BASS .
NOTE:
Perform the steps on the right and left side.
- Remove the cover cap (1)
and release the screw (2)
.

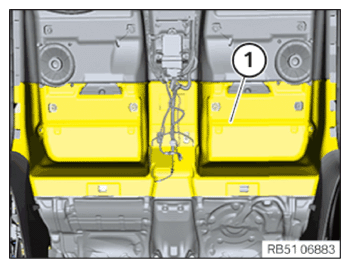

- Carefully continue to feed out the carpet (1) at the side trim panels and the air ducts and remove from the vehicle.
