Remove both front seats

NOTE: Procedure shows driver's seat only. Procedure on the passenger side is identical.

NOTE: Perform the steps on the left and right side.

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

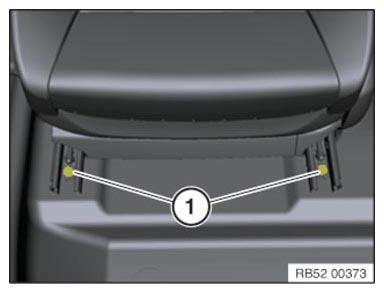

Shift front seat forwards.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

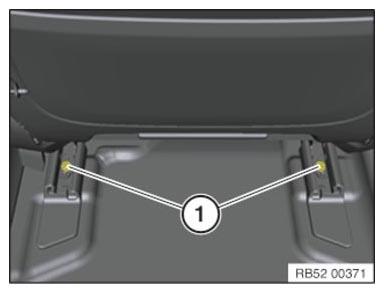

Shift front seat rearwards.
Loosen screws (1).
Adjust the front seat to the center position.
When removing the driver's seat:
Move the steering column to the fully retracted position and shift upwards fully.

Courtesy of BMW OF NORTH AMERICA, INC.

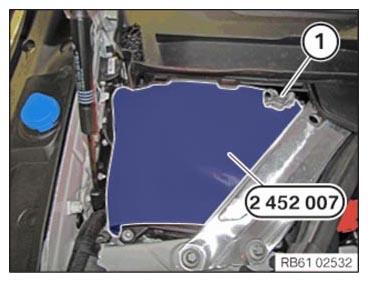

WARNING: Deactivate the 12-V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no battery charger connected to the jump start terminal in the engine compartment.

WARNING: Unprotected battery terminals.
Risk of short circuits! Risk of fire!

Courtesy of BMW OF NORTH AMERICA, INC.

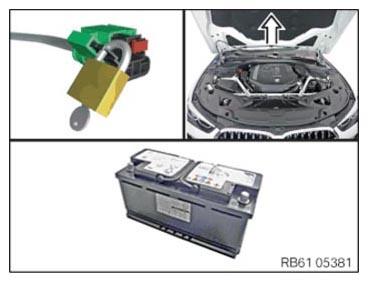

De-activate vehicle electrical system:

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.
