Remove the front axle completely with the engine and transmission
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL).
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column.
Damage to steering column switch cluster (SZL).
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column.
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.
NOTE:
TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.
For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .
Follow notes for repair work on the cooling system.
For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted .
If this is not observed, there is a risk of component damage or engine damage.
The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
Filling without the vacuum filling equipment (watering can filling) is not permitted .
If this is not observed, there is a risk of component damage or engine damage.
The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON RIGHT .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING THE LEFT AND RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL .
- Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
- Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING CONTROL UNIT BRACKET .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to DISCONNECTING THE TRANSMISSION OIL LINES .
- Refer to DISCONNECTING REFRIGERANT LINES .
- Refer to DISCONNECTING THE FUEL LINE AND THE TANK VENT LINE .
- Refer to DISCONNECTING THE COOLANT LINES .
- Refer to DISCONNECTING THE POSITIVE BATTERY CABLE FROM THE FRONT POWER DISTRIBUTION .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to PARTIALLY LOOSENING THE FRONT AIR SUSPENSIONS .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to REMOVING THE REINFORCEMENT STRUT FROM THE ENGINE MOUNT ON THE LEFT AND RIGHT .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to IF INSTALLED: REMOVING THE SILENCER OF THE STATIONARY HEATING .
- Refer to RELEASING THE FRONT LEFT AND RIGHT BRAKE CALIPERS .
- Refer to DETACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
- Refer to IF INSTALLED: RELEASING LINE FOR THE RIGHT AND LEFT VERTICAL ACCELERATION SENSORS .
- Refer to IF INSTALLED: DISCONNECTING THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER .
- Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to DETACHING COOLANT HOSES FROM THE FRONT AXLE SUPPORT .
- Refer to IF INSTALLED: REMOVING THE TORSION STRUT ON THE RIGHT AND LEFT WHERE REQUIRED .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING THE REAR AXLE COVER .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING THE HEAT SHIELDS .
- Refer to REMOVING THE COMPLETE PROP SHAFT .
- Refer to REMOVING TRANSMISSION BEARING SUPPORT (ALL-WHEEL DRIVE VEHICLE) .
- Refer to REMOVING THE RETAINING PLATES .
- Refer to RELEASING THE HIGH-VOLTAGE WIRING HARNESS FROM THE TRANSMISSION .
- Refer to PREPARING THE MOBILE TABLE LIFT .
- Refer to POSITIONING THE MOBILE TABLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
NOTE:
Perform the steps on the right and left side.

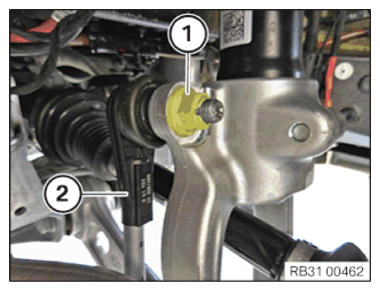

- Loosen nut (1) .
NOTE:
Counter-hold at the Torx socket.
- Releasing the anti-roll bar link (2) from the spring strut holder.
NOTE:
Perform the steps on the right and left side.
- Loosen nut (1) .
- Guide out and remove the screw (2) .
NOTE:
Perform the steps on the right and left side.
- Loosen nut (1) .
- Feed out and remove the screw (2) .
- Detach the wishbone (4)
from the swivel bearing (3)
.
- Loosen screw (1) .
- Feed out ground cable and set it aside.
- Loosen screws (2) .
NOTE:
Perform the steps on the right and left side.

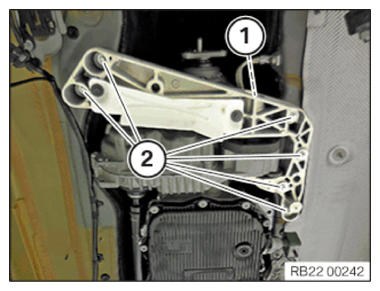

- Loosen screws (1)
.
- Release screws (1)
to (3)
.
- Install the complete front axle including engine and transmission.
