Position the mobile table lift

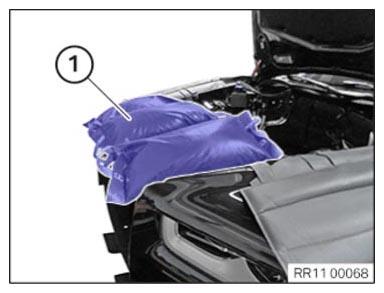

Vehicle to be sufficiently loaded with sandbags (1) in the front section.

Courtesy of BMW OF NORTH AMERICA, INC.

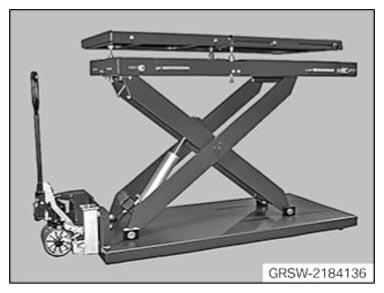

Position the mobile lifting table 2 184 136 under the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

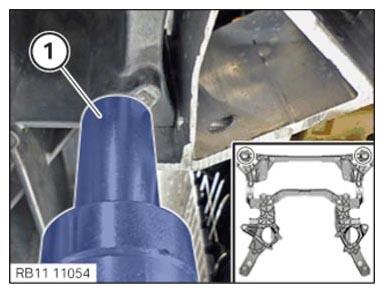

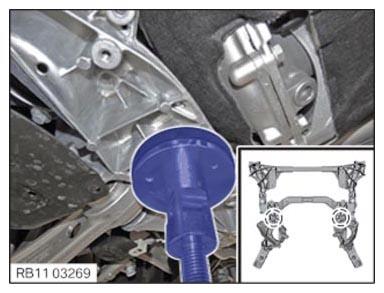

Position the mounts on the front subframe as shown.
Bring mounts into contact by twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

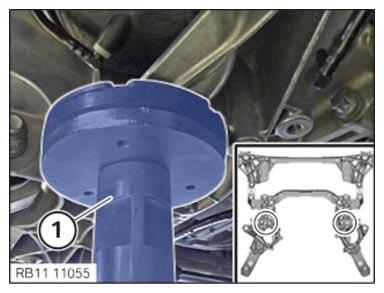

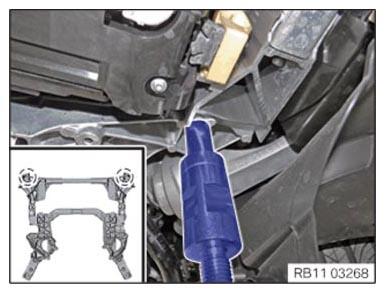

Position the mounts on the front subframe as shown.
Bring mounts into contact by twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

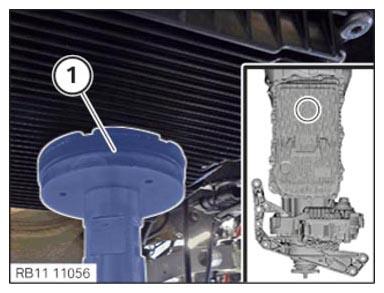

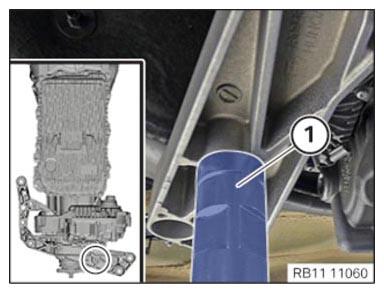

Position the mount (1) as shown on the automatic transmission.
Bring the mount (1) in contact by twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

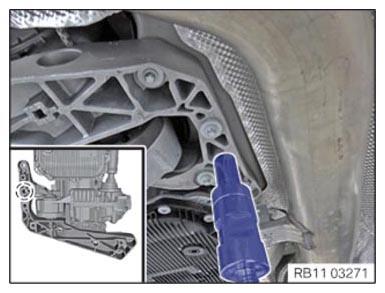

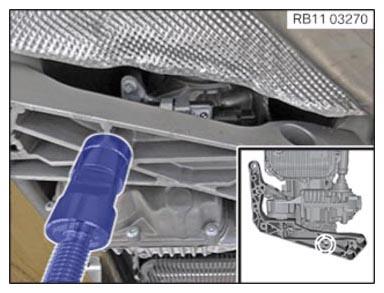

Position the mount on the transmission cross member as shown.
Bring mounts into contact by twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

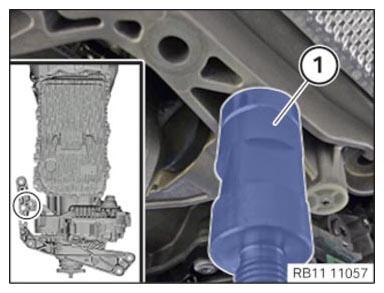

Position the mount on the transmission cross member as shown.
Bring mounts into contact by twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

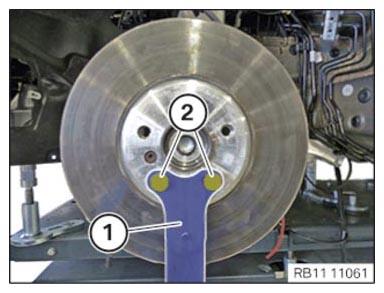

Position mounts for the swivel bearing (1) on the swivel bearing.
Hand-tighten the screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Position mobile lifting table 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.
Position mounting elements (1) with mountings (50) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Position mounting elements (1) with mountings (80) at front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the swivel bearing mounting (1) on the swivel bearing.
Tighten down screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the mounting element (1) with the mount (80) on the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the mounting elements (1) with the mountings (60) at the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the mounting element (1) with the mount (60) on the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
