Remove the retaining plates
Remove the retaining plates

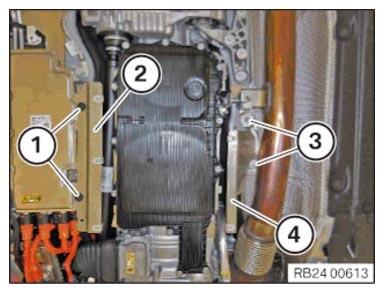

Loosen screws
(1)
.
Remove holder
(2)
.
Loosen screws
(3)
.
Remove holder
(4)
.
Courtesy of BMW OF NORTH AMERICA, INC.

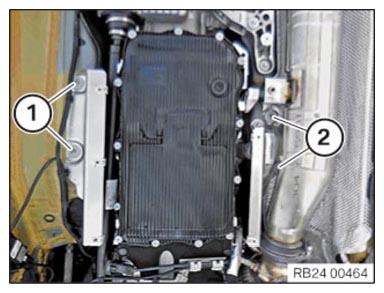

Loosen nuts
(1)
and
(2)
.
Remove retaining plates.
Courtesy of BMW OF NORTH AMERICA, INC.
