Disconnecting the coolant lines
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids.
Observe country-specific waste disposal regulations.

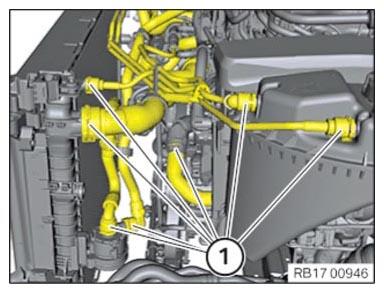

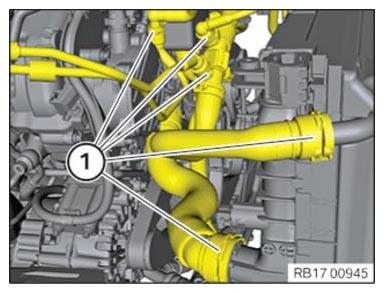

- Unlock and disconnect coolant line (1)
from the heat management module to the heat exchanger for heating system on the heat management module.

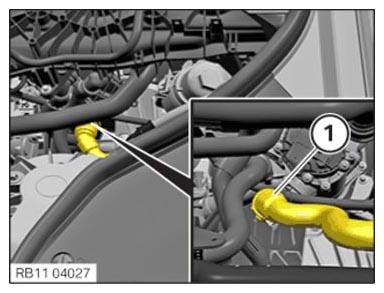

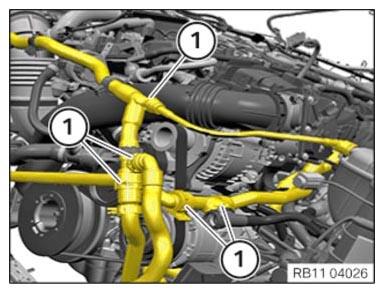

- Unlock and disconnect coolant lines (1) .
