Install charge air line

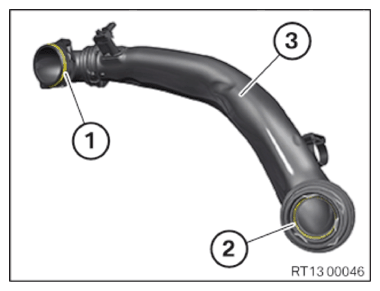

• Check sealing ring (1)  on the charge air line (3)  for damage, if necessary replace with the special tool 0 496 714 (00 9 030) .
• Check sealing ring (2)  on the charge air line (3)  for damage, if necessary replace with the special tool 0 496 714 (00 9 030) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install charge air line (4)  .
• Lock clamp (3)  .

  The clamp (3)  must engage audibly.

• Insert and install the coolant hose (2)  .
• Lock clamp (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Charge air line to throttle valve
  M6x30	tightening torque	8 Nm

• Connect connectors (2)  and lock.

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and position auxiliary coolant pump (4)  .
• Feed in and position retaining bracket (3)  .
• Tighten nut (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Electric coolant pump to holder
  M6	tightening torque	8 Nm

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE REAR CROSS CONNECTION .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
