(Install clean air pipe)

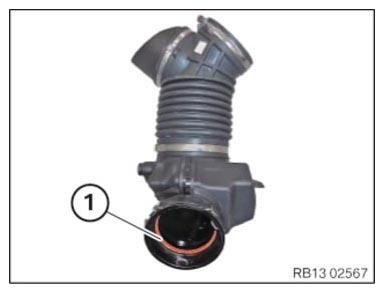

• Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.

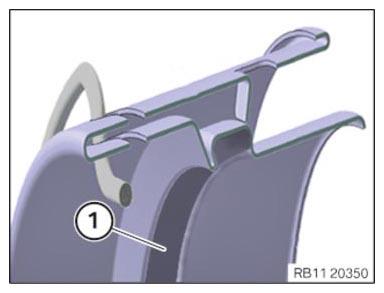

• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Seal

  Parts:  Seal

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.
• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).

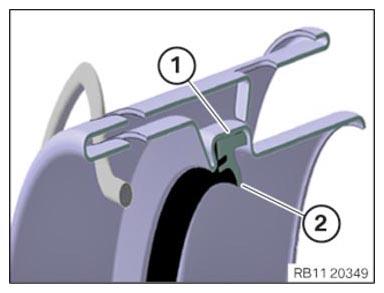

• Make sure that the sealing lip (2) is directed to the inside as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

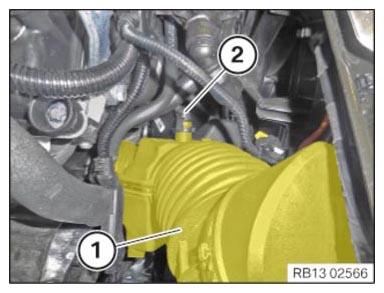

• Feed in and position the clean air pipe (1).
• Connect engine ventilation line (2) and lock.

  The engine ventilation line (2) must snap-in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

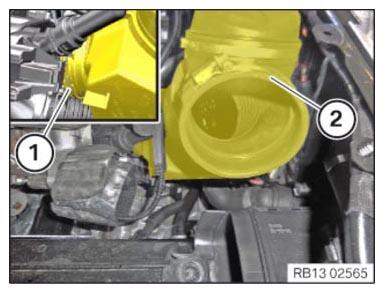

• Install the clean air pipe (2).
• Lock clamp (1).

  Clamp (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

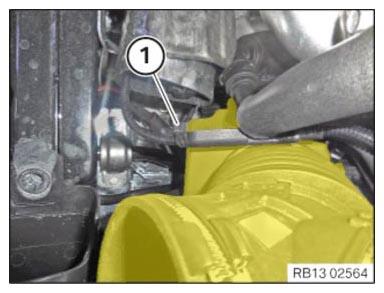

• Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
