Installing the cover on the front roll bar

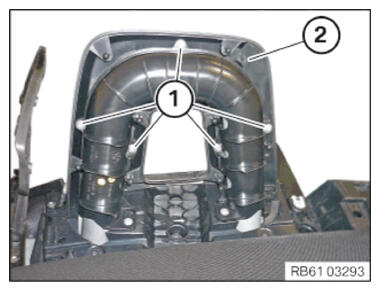

• Correctly position the front cover on the roll bar (2)  and tighten screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Trim panel, rollover protection
  Screw	tightening torque	2 Nm

Follow-up work

• Refer to INSTALLING THE REAR COVER AT THE ROLL BAR .
• Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
