Installing the rear cover at the roll bar

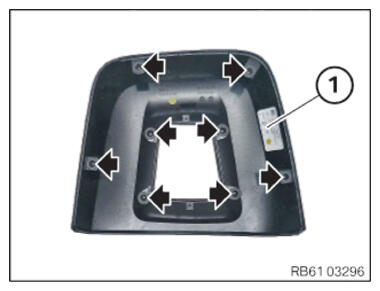

• Check all attachments (arrows) at the rear cover at the roll bar (1)  for correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

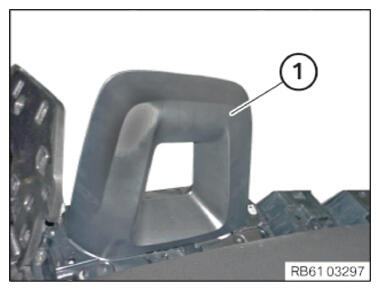

• Position the rear roll bar (1)  and clip it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE TOP ROLLOVER PROTECTION .
