When replacing the module bracket

Preliminary work

• Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING FRONT DOOR TRIM PANEL .
• Refer to REMOVING MODULE BRACKET .

Removing airbag sensor from the front door

• Unlock plug connection (1)  and disconnect.
• Unlock the detent (2)  .
• Turn airbag sensor (3)  in the arrow direction and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

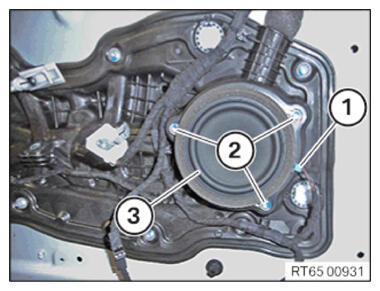

Removing the mid-range speaker in the door

• Disconnect plug connection (1)  .
• Loosen screws (2)  .
• Remove the mid-range speaker (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Installing mid-range speaker in the door

• Position the mid-range speaker (3)  .
• Tighten down screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Loudspeaker on door
  screw	Tightening torque	1.8 Nm

• Connect plug (1)  .

Installing airbag sensor in the front door

• Turn airbag sensor (3)  in the arrow direction until the detent (2)  engages.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING MODULE BRACKET .
• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
