Installing the front door trim panel

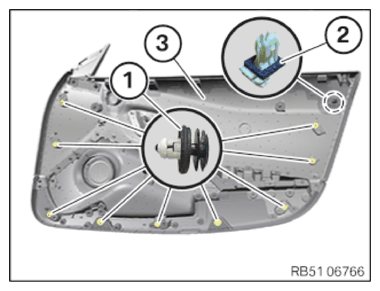

• Check all the clips (1)  and (2)  of the door trim panel (3)  for damaged and that they are present.

  Damaged or missing clips (1)  and (2)  must be replaced.

• Make sure that the clips (1)  are not snapped in.
• The graphic shows the disengaged state.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door trim panel (2)  .
• Position the Bowden cable correctly for the door opener (1)  on the door trim panel (2)  and lock it.
• Connect and engage all related connectors for the door trim panel (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

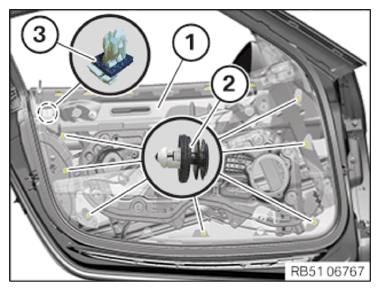

• Check if all clamps (2)  are damaged and if they are present.

  Damaged or missing clamps (2)  must be replaced.

• Correctly position the door trim panel (1)  and engage at clamps (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the door trim panel (1)  correctly and clip in at the clips (2)  and (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Turn the locks (1)  at the hexagon head by about 90° and lock them.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Door trim panel to door
  Oval-head screw	Tightening torque	3 Nm

• Actuate the door opener (1)  and keep it in position.
• Tighten down screw (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Door trim panel to door
  Oval-head screw	Tightening torque	3 Nm

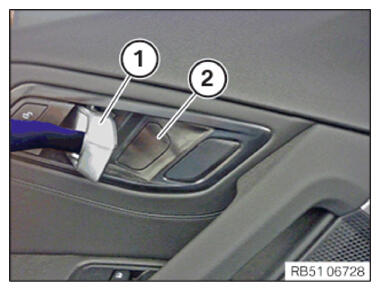

• Actuate the door opener (1)  and keep it in position.
• Correctly position and install cover (2)  .

Installing the cover on the door handle

Courtesy of BMW OF NORTH AMERICA, INC.

• Check clamps (2)  for damage and if available.

  Damaged or missing clamps (2)  must be replaced.

• Position cover (1)  with guide (3)  correctly and snap it into clamps (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
