Removing module bracket

Preliminary work

• Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING FRONT DOOR TRIM PANEL .

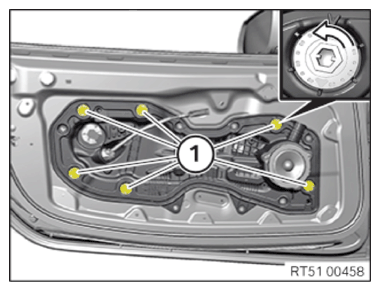

• Loosen screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the locks (1)  in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release vehicle wiring harness from the sound insulation.
• Loosen nut (3)  .
• Remove the Bowden cable for the door opener (4)  from the sound insulation (2)  .
• Unlock and disconnect all associated plug connections.
• Remove the sound insulation (2)  from the door (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.
