Installing the cushion

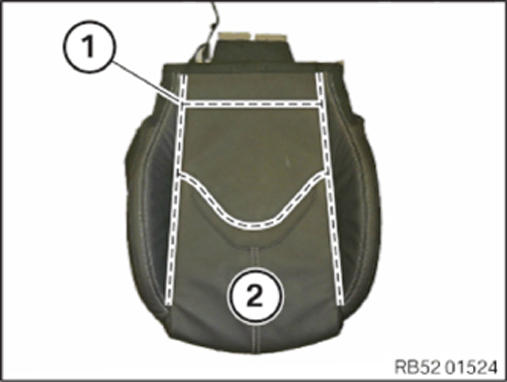

- Place the seat cover (2) correctly on the cushion.
- Secure all trim wires (1)
with clamps.
- Replace the clamps (2)
.
Parts: Clamps
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Clasp the trim wire (3)
of the cushion (1)
and the trim wire (4)
of the seat cover with the clamp (2)
and bend the clamp (2)
.
1 Upholstery 2 Clamp 3 Trim wire in cushion 4 Trim wire in seat cover 5 Seat cover
Follow-up work
- Refer to REMOVING THE SEAT COVER WITH THE CUSHION .
- Refer to INSTALLING THE THIGH SUPPORT ON THE FRONT SEAT .
- Refer to FASTENING THE GROUND CABLE OF THE SEAT OCCUPANCY MAT (CIS) .
- Install the support for seat adjustment switch combination
- Refer to INSTALLING OPERATING UNIT FOR SEAT ADJUSTMENT .
- Refer to INSTALLING THE OUTER COVER ON THE ELECTRICAL FRONT SEAT .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING FRONT SEAT .
- Refer to INSTALLING THE FRONT STRAP FITTING .
