Install operating unit for seat adjustment

G12668205

Courtesy of BMW OF NORTH AMERICA, INC.

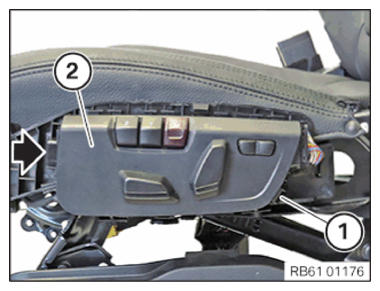

Insert the switch combination (2) into the guide (arrow) and engage it in the detent (1) .
Connect associated connector.

Follow-up work

Refer to INSTALLING THE OUTER COVER ON THE ELECTRICAL FRONT SEAT .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING FRONT SEAT .
Refer to INSTALLING THE FRONT STRAP FITTING .
