(Fastening the ground cable of the seat occupancy mat (CIS))

NOTE: TECHNICAL INFORMATION
Loose connection of the ground cable can result in fault memory entries and malfunctioning of the airbag. The steps described in the following must be followed.

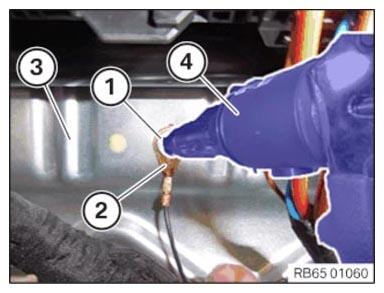

Insert the rivet nut (1) through the ground cable (2) into the seat mechanics (3).
Fasten the rivet nut (1) using the standard tools (4) in such a way that the ground cable (2) can no longer be twisted.
Standard tools:

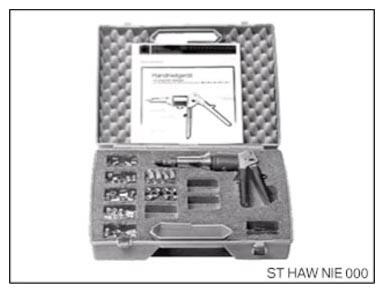

Hand riveter ZS 308

Hand riveter ZS 308

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Hand riveter ZS 308

81439429204

NOTE: TECHNICAL INFORMATION
The ground cable must not be twisted.

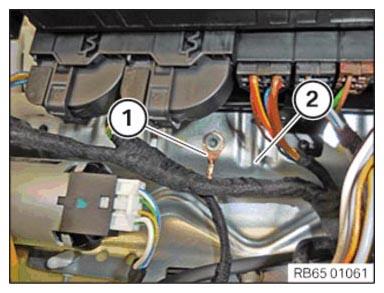

Check ground cable (1) for tight seat, possibly release rivet nut and insert new rivet nut.
Check correct connection of the ground cable (1) to the seat mechanics (2) by measuring the resistance with the standard tools, possibly release rivet nut and insert new rivet nut.
Standard tools:

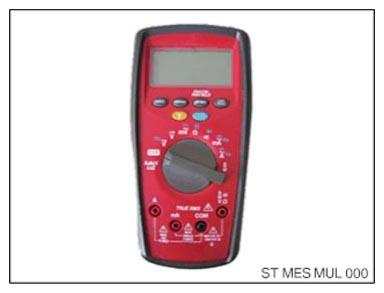

Multimeter

Multimeter

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Multimeter Benning MM7-1

81312158153

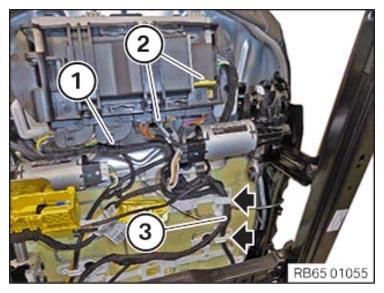

Guide the cable (3) for the seat occupancy mat (CIS) into the holders (arrows).
Connect the connector (2) for the seat occupancy mat (CIS) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

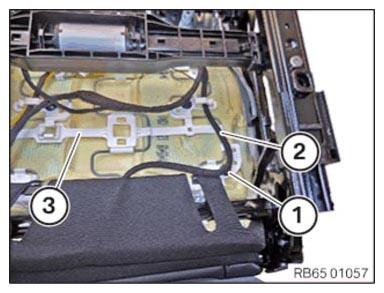

Attach the cable (2) of the seat occupancy mat (CIS) to the connector locking (1) at the seat mechanics (3).

Courtesy of BMW OF NORTH AMERICA, INC.

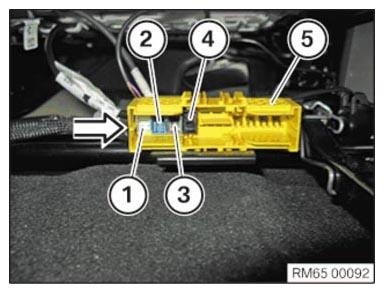

Correctly insert and lock the connector housing in the sequence (1) to (4) into the connector housing (5).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

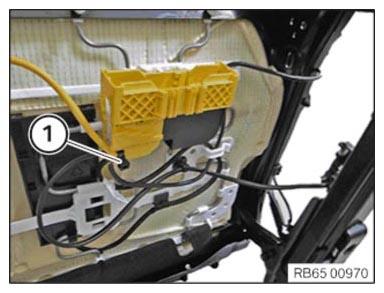

Secure cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.
