Adjusting Left Or Right Tailgate Hinge

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY DIMENSIONS .

NOTE: Perform the steps on the right and left side.

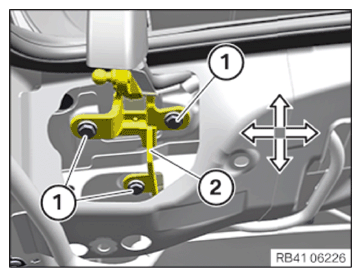

Slacken screw (1) until the tailgate hinge (2) can be shifted.
Shift tailgate hinge (2) until the tailgate has the specified gap dimension for the side panel.

Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Tailgate hinge to body
M8 screw
	tightening torque
	19 Nm

Check

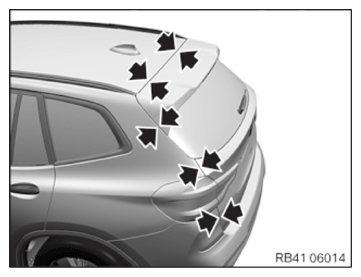

Check the gap dimensions (arrows) between trunk lid and side panels.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Gap dimensions do not correspond to the specifications.

Measure
Adjust tailgate hinge.

Follow-up work

Refer to INSTALL THE TENSION SPRING OR SPINDLE DRIVE .
Refer to INSTALL REAR SPOILER .
Refer to INSTALLING THE TAILGATE TRIM PANEL .
Refer to MOUNTING BOTH TRIMS FOR THE REAR WINDOW FRAME ON THE SIDE .
Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
Refer to INSTALLING BOTH TRUNK LID COVERS .
Refer to INSTALLING THE TRUNK LID LIGHT .
Refer to INSTALL THE POWER TAILGATE SWITCH .
Refer to INSTALLING THE HEADLINING (LOWERED) .
Refer to INSTALLING HEADLINING (LOWERED) (WITH PANORAMA GLASS ROOF) .
Refer to INSTALLING LEFT HANDS-FREE MICROPHONE .
Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
Refer to INSTALLING THE VANITY MIRROR LIGHT AT THE FRONT LEFT OR RIGHT .
Refer to INSTALL THE COUNTER SUPPORT FOR THE SUN VISOR .
Refer to INSTALL THE SUN VISOR .
Refer to INSTALL A-PILLAR TRIM PANEL .
Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
Refer to INSTALLING THE HOLDER ON LEFT OR RIGHT .
Refer to INSTALLING THE UPPER B-PILLAR TRIM PANEL .
Refer to INSTALLING C-PILLAR TRIM PANEL .
Refer to INSTALLING D-PILLAR TRIM PANEL .
