Installing the holder on left or right
NOTE:
The description is for one component only. The procedure is identical for all further components.
Removing the grab handle

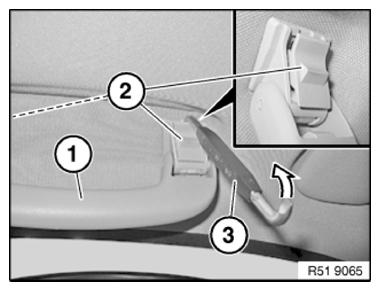

- Expand the grab handle (1) towards the bottom.
- Disengage and remove the locking insert (2) with an angle screwdriver (3) as shown.

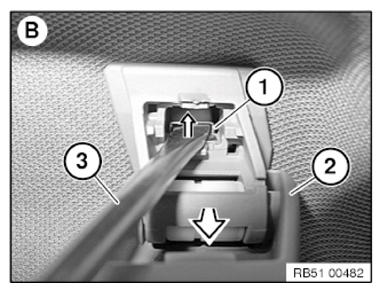

- Pull the grab handle (2) slightly to the inside and hold it.
- Release the top and bottom release tab (1) with a suitable screwdriver (3) in the arrow direction respectively.
- Guide the grab handle (2) out.
- Repeat the operation on the other side of the grab handle (2).
