Install the tension spring or spindle drive

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

Install the tension spring

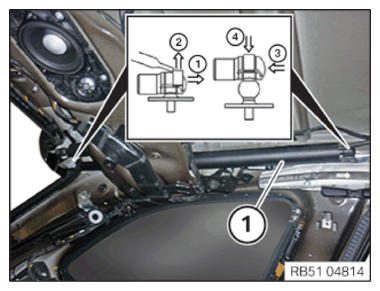

Position the gas spring (1) with the ball sockets on the ball hubs and engage with force.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the spindle drive

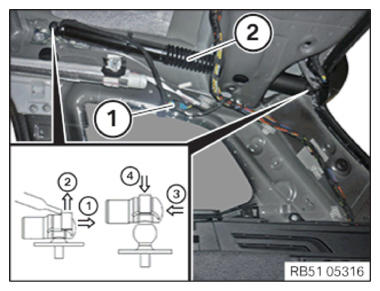

Position the spindle drive (2) on the ball hub with the ball socket and snap it in with force.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
