Removing The Side Panel On The Right
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00 02 001 RAISING THE VEHICLE WITH A VEHICLE LIFT (X3 M40I, 2018-2019, X3 M40I, 2020-2021, X3 M40I, 2022, X3 SDRIVE 30I, 2018-2019, X3 SDRIVE 30I, 2020-2021, X3 SDRIVE 30I, 2022, X3 XDRIVE 30I, 2018-2019, X3 XDRIVE 30I, 2020-2021, X3 XDRIVE 30E, 2020-2021 and 00 02 001 RAISING THE VEHICLE WITH A VEHICLE LIFT (X3 M40I, 2018-2019, X3 M40I, 2022, X3 SDRIVE 30I, 2018-2019, X3 SDRIVE 30I, 2020-2021, X3 SDRIVE 30I, 2022, X3 XDRIVE 30I, 2018-2019, X3 XDRIVE 30I, 2020-2021, X3 XDRIVE 30E, 2020-2021) .
Preliminary work
- Refer to REMOVING THE GUTTER STRIP ON THE RIGHT OF THE WINDSHIELD .
- Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to REMOVE THE RECORDING OF THE RIGHT HOOD SEAL .
- Refer to REMOVE FRONT RIGHT WHEEL ARCH TRIM .
- Refer to REMOVE THE RIGHT DOOR SILL TRIM PANEL .
- Refer to REMOVE FRONT RIGHT WHEEL .
- Refer to REMOVE THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
- Refer to REMOVE REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to REMOVE WASHER FLUID RESERVOIR .
- Refer to REMOVE THE TRIM FROM THE SIDE PANEL .
- Refer to PARTIALLY DETACHING BUMPER COVER, RIGHT FRONT, AT SIDE PANEL .
- Mask areas (1) on the headlight and on the bumper cover with a plastic adhesive tape.
- Mask the area (1) of the door with plastic adhesive tape.
- Remove the sound insulation (1).NOTE: To provide a better overview: Schematic diagram with partially hidden components.

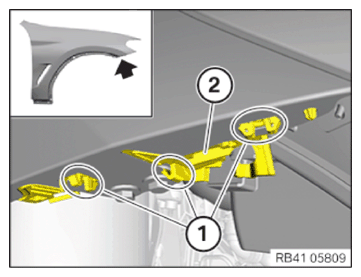

- Unclip detents (1) on the bumper guide (2) and unscrew the holder (2) from the side panel.
- Loosen screws (1).
- Loosen screw (1).
- Loosen screws (1).
- Open the front door.
Pull the sealing (1) down slightly in the direction of the arrow.
- Loosen screw (2).
- Close front door.
- Loosen screws (1).

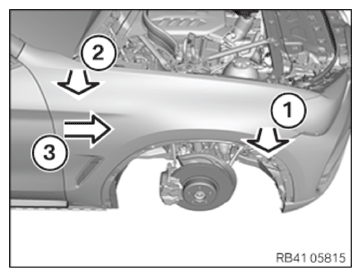

- Release the side panel in the order and direction shown.
- Undo the side panel towards the outside in the area of the headlight (1) and the top of the A-pillar (2).
- Remove the side panel in the area of the A-pillar (3) to the front.
