Remove the right door sill trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the door sill trim panel

Prerequisite

The front and rear doors are open.

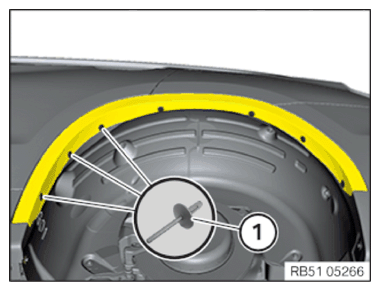

Release blind rivet (1) on the rear wheel arch trim.

Courtesy of BMW OF NORTH AMERICA, INC.

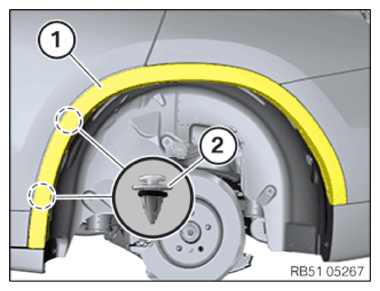

Release the rear wheel arch trim (1) at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

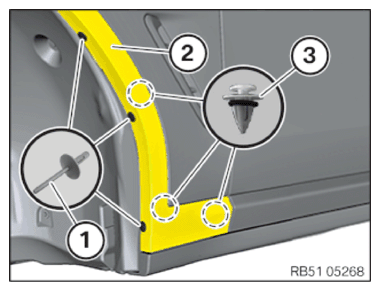

Loosen blind rivet (1).
Release front wheel arch trim (2) on the clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

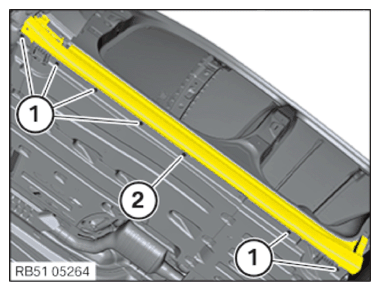

Loosen screws (1).
Loosen nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.

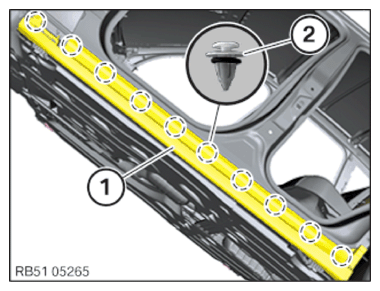

Release door sill trim panel (1) from the rear starting with the clips (2).
Carefully thread out and remove door sill trim panel (1).
If necessary, unlock associated plug connection and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
