Remove rear section of the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

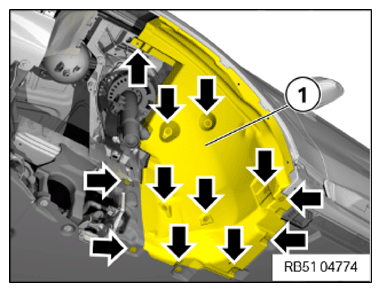

- Remove screws (arrows).
- Guide out rear section (1) of wheel arch cover at front and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
|
