41 51 045 Removing/Installing/Replacing Cover Of Front Door, Inner Left Or Right

Read contents of BODY, GENERAL .

NOTE: Observe procedures for REPAIR STAGE 1 .

Necessary preliminary tasks:

Remove DOOR TRIM PANEL
Remove front DOOR
Affix DOOR ON ASSEMBLY STAND
Remove SPEAKER

Lever out window frame cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

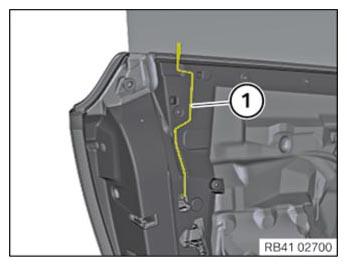

Lift out operating rod (1).

Courtesy of BMW OF NORTH AMERICA, INC.

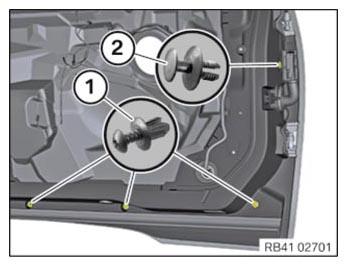

Release expanding rivets (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

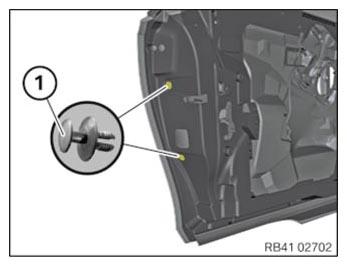

Release expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

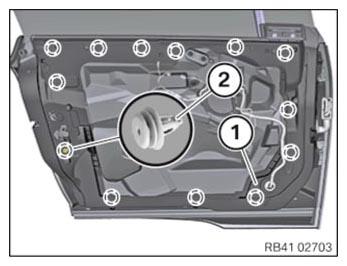

Release cover (1) from the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

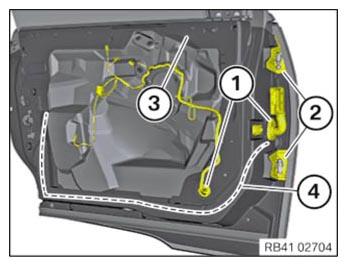

Feed cable grommets (1) out of cover (3).

Release hinge covers (2) from cover (3).

Slightly pull cover (3) back and release cable clip from wiring harness (4).

Feed wiring harness completely out of cover (3).

IMPORTANT: Risk of damage!
Hold door on assembly stand in position and release mounting for door stop on assembly stand.
Remove cover (3).
Affix door stop on assembly stand.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the following components are correctly seated:

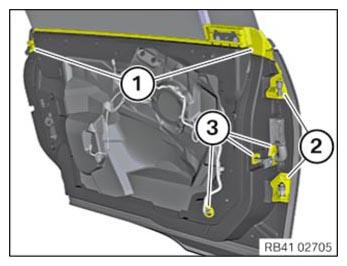

Weather strip (1)
Hinge covers (2)
Grommets (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

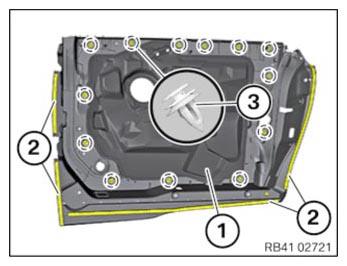

Sealing foil (1) and gaskets (2) must not be damaged.

Replace faulty clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.
