51 41 000 Removing and installing (replacing) front left or right door trim panel

Special tools required:

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Press cover (1) in top area inwards and remove.

Release screw underneath.

Tightening torque 51 41 1AZ .

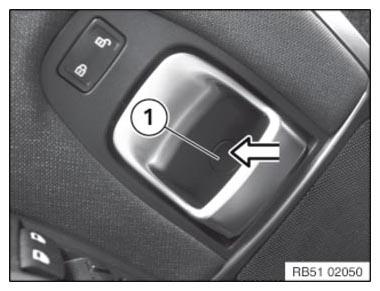

Fig 1: Pressing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

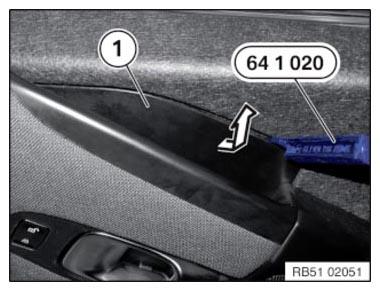

Lever out cover (1) in direction of arrow using special tool 64 1 020 and remove.

Fig 2: Removing Cover Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 41 1AZ .

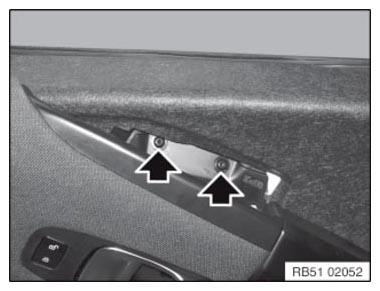

Fig 3: Locating Front Door Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lever door trim panel (1) out of clips (2) beginning at the top.

IMPORTANT: Risk of damage. Do not pull on map pocket. Door trim panel lower section may separate from door trim panel upper part.

Installation note:

Replace faulty clips (2).

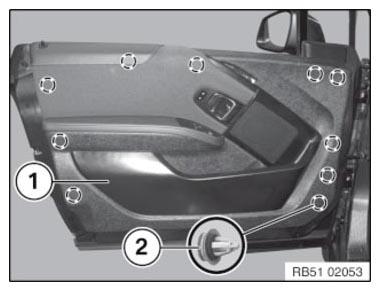

Fig 4: Identifying Door Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Fold door trim panel (1) away from door slightly, beginning in the top area.

Release corresponding plug connections and cable clips.

Remove door trim panel (1) upwards.

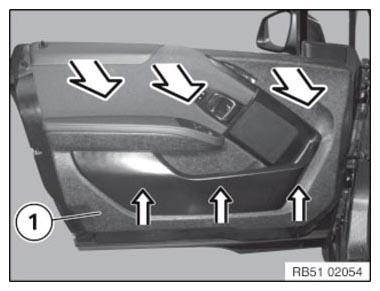

Fig 5: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Installation note:

Perform function check for door inside handle with door open and rotary striker lock closed.

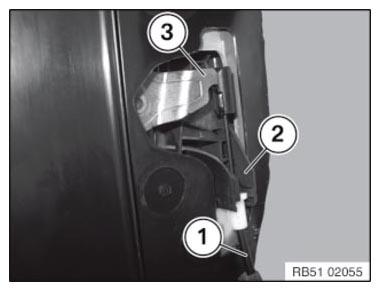

Fig 6: Identifying Bowden Cable, Counter Support And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, swap over the following parts:

Installation note:

After assembling the door trim panel proceed as follows:
