65 13 070 Removing and installing/replacing speakers (mid-range speaker, front door left and right)

Necessary preliminary tasks:

• Remove front DOOR TRIM PANEL

Release screws (1).

Tightening torque 65 13 1AZ .

Unfasten plug connection (2) and disconnect.

Remove speaker (3) from inner door panel.

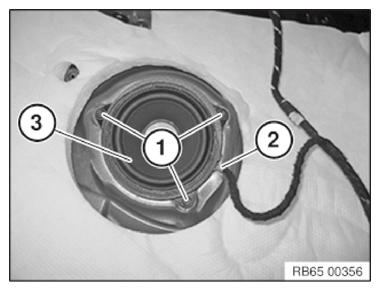

Fig 1: Identifying Inner Door Panel Speaker, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
