51 16... Removing and installing/replacing trim on center console at side left or right

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

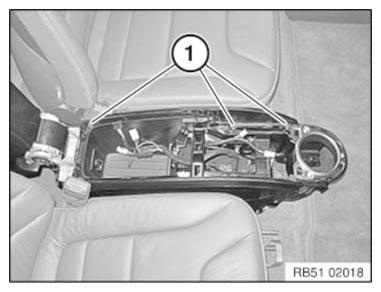

Release screws (1).

Fig 1: Identifying Center Console Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

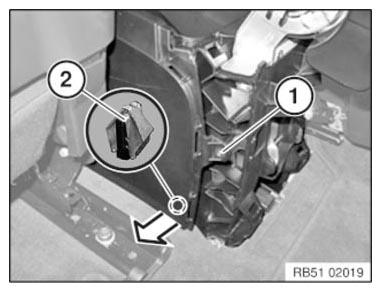

Release screw (1).

Lever trim out of clamps (2).

Installation note:

Replace defective clips (2).

Fig 2: Removing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.

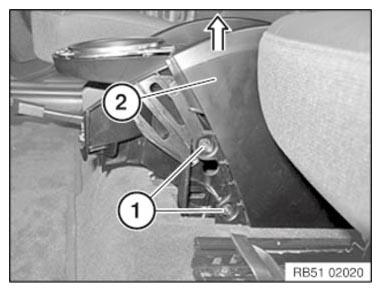

Release screws (1).

Pull out decorative trim (2) upwards.

Fig 3: Identifying Decorative Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
