Replacing radial shaft seal for drive flange on rear axle final drive

Special tools required:

33 5 050
33 5 070
33 5 060
33 5 090
2 456 244
00 5 010
2 298 610

CAUTION: Use only approved differential oil: BMW rear differential fluid MSP/A , BMW part number 83 22 2 365 988
Failure to comply with this instruction will result in serious damage to the rear axle final drive!

Necessary preliminary work:

Remove the HOLDER (ADAPTER) ON THE FRONT REAR AXLE DIFFERENTIAL .

Removal:

Remove retaining clip (1) and sunk nut (2) with diaphragm seal.

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of flange nut (1) to bevel pinion (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Warm up flange nut using a hot air blower.

Attention : Do not heat beyond the dimension required to open the nut! Do not use naked flames (e.g. welders) to heat up the component!

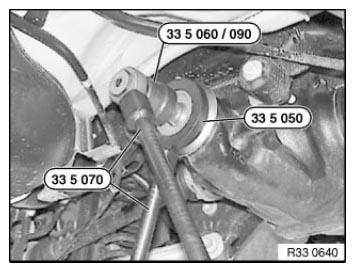

Loosen the flange nut using special tool 33 5 050 and 33 5 070 and a 3/4" 500 Nm torque wrench in counter-clockwise direction. For this purpose, counter the bevel pinion using special tools 33 5 060/33 5 090 2 456 244 33 5 070 (installed versions may vary).

In vehicles from 07/2016 (only M4 GTS from 03/2016), use tool 2 456 244.

CAUTION: Since the flange nut has a very high release torque, the torque wrench must be set to the maximum scale value (500 Nm) to avoid damaging the inner resting functional elements!

Courtesy of BMW OF NORTH AMERICA, INC.

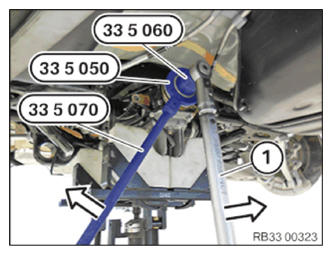

NOTE: If applicable, set the special tool 33 5 070 on the reinforcement strut and release the flange nut by turning the drive bevel gear with the special tools 33 5 060 and 33 5 090 and a 3/4" 500 Nm torque wrench (1). For this the parking brake must be released and the torque wrench set to the maximum scale value.

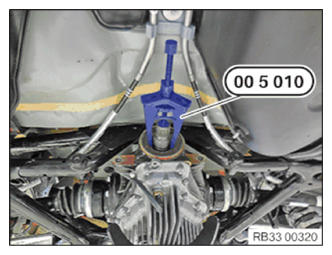

Pull out radial shaft seal with special tool 00 5 010.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bevel pinion thoroughly to remove remnants of screw locking agent.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat the sealing lips of the new shaft seal with final drive oil.

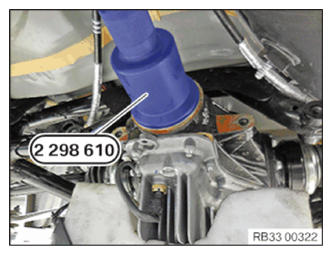

Drive in radial shaft seal with special tool 2 298 610.

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust plate for damage, replace if necessary.

CAUTION: Clean flange nut thoroughly to remove remnants of grease and screw locking agent.
Grease the insert collar (1) of the flange nut using grease Castrol Optitemp HAT LF1, BMW part number 83 23 0 417 754.
Apply a thin coating of grease to shaded area (2) of flange nut.
Coat at least four thread turns of the flange nut with "Drei Bond adhesive type 1385".

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: In order to avoid damaging the rear axle final drive, do not under any circumstances tighten down the flange nut (1) beyond the marker point of the bevel pinion (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down the flange nut (1) until the marker points are aligned.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the HOLDER (ADAPTER) ON THE FRONT REAR AXLE DIFFERENTIAL .
Check the OIL LEVEL in the rear axle differential, correct if required.
