Removing and installing complete left or right spring strut shock absorber

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

• Remove TENSION STRUT ON SPRING STRUT DOME .
• Remove FRONT WHEEL .
• Remove FRONT BRAKE DISC .
• Remove ANTI-ROLL BAR LINK FROM SPRING STRUT .
• Disconnect plug connection for pulse sensor and expose cable up to holder on spring strut.
• Disconnect plug connection for brake pad wear sensor and expose cable up to brake caliper.
• Release brake hose from holder on spring strut.

Removal:

Slacken nut (2).

• If necessary, hold up at the Torx socket.

Release track rod end (1) from swivel bearing.

Unscrew nut (3).

• If necessary, hold up at the Torx socket.

Release tension strut (4) from swivel bearing.

Slacken nut (5).

• If necessary, hold up at the Torx socket.

Release wishbone (6) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove spring strut with swivel bearing downwards.

Remove reinforcement ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

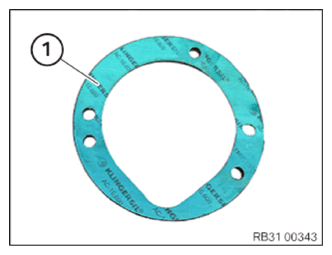

Check sealing washer (1) on reinforcement ring and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Sealing washer (1) vehicle check for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean inside contact surface at spring strut dome.

Align spring strut to the bores in the spring strut dome using the centering pins.

Mount reinforcement ring (2).

Part  : Replace screws (1).

Tighten down screws (1).

Tightening torque 31 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace nuts (2, 3 and 5).

Join track rod end (1) with swivel bearing.

Tighten nut (2).

• If necessary, hold up at the Torx socket.

Tightening torque 32 21 3AZ .

Joint tension strut (4) with swivel bearing.

Tighten nut (3).

• If necessary, hold up at the Torx socket.

Tightening torque 31 12 2AZ .

Join wishbone (6) and swivel bearing.

Tighten nut (5).

• If necessary, hold up at the Torx socket.

Tightening torque 31 12 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Connect plug connection for pulse sensor and secure cable.
• Connect plug connection for brake pad wear sensor and secure cable.
• Secure brake hose on holder on spring strut.
• Mount ANTI-ROLL BAR LINK ON SPRING STRUT .
• Install FRONT BRAKE DISC .
• Install FRONT WHEEL .
• Install TENSION STRUT ON SPRING STRUT DOME .
• Carry out wheel alignment procedure. Refer to CARRY OUT KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
