Removing and installing/replacing the anti-roll bar link (push rod) for the left or right anti-roll bar
Risk of damage!
- Avoid bending the head of the anti-roll bar during assembly!
- An impact screwdriver must not be used!
Necessary preliminary work:
- Remove FRONT WHEEL .
Removal:
IMPORTANT:

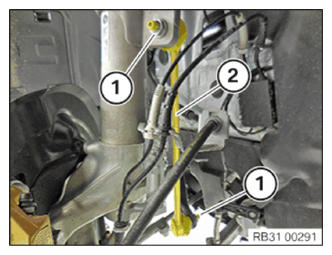

It is important to counterhold Torx socket when loosening push rod screw connection (1).
Unscrew nuts (1).
Remove anti-roll bar link (2).
Installation:
IMPORTANT:
It is important to counterhold the Torx socket when tightening the push rod screw connection (1)!
Position the anti-roll bar link (2).
Part: Replace nuts (1).
Tighten down nuts (1).
Tightening torque 31 35 2AZ .
Required follow-up work:
- Install FRONT WHEEL .
