Removing and installing/replacing front air duct (S55 engine)

Carry out this repair only when the engine has cooled down.

Necessary preliminary work:

• Remove right-hand INTAKE SILENCER HOUSING .
• Remove IGNITION COIL COVER .
• Remove top rear AIR DUCT .
• Remove STIFFENING PLATE .
• Remove UNDERBODY PROTECTION .

Removal:

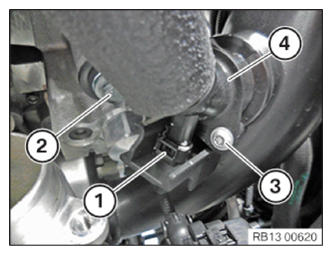

Unlock connector (1) and pull off.

Release screw (2).

Release screw (3).

Carefully pull the vent hose (4) out of the air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

Only ECE models:

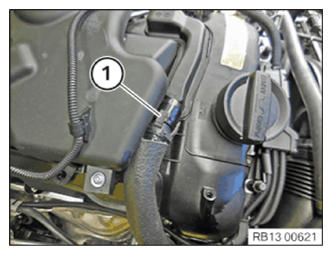

Release vent hose (1) on cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

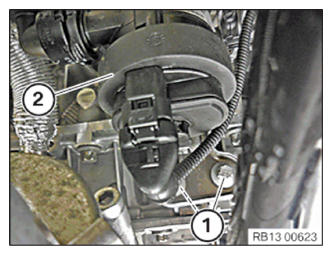

Release screws (1) and lay auxiliary coolant pump (2) to side.

Courtesy of BMW OF NORTH AMERICA, INC.

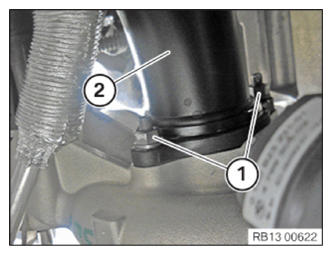

Release nut (1) and remove air duct (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install air duct (2) and tighten nut (1).

Tightening torque 13 71 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) for auxiliary coolant pump (2).

Tightening torque 17 10 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).

Connector (1) must engage audibly.

Tighten screw (2).

Tightening torque 13 71 2AZ .

Carefully insert the vent hose (4) into the air duct.

Tighten screw (3).

Tightening torque 13 71 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Only ECE models:

Lock vent hose (1) on cylinder head cover.

Vent hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install top rear AIR DUCT .
• Install right INTAKE FILTER HOUSING .
• Install IGNITION COIL COVER .
• Install STIFFENING PLATE .
• Install UNDERBODY PROTECTION .
