Removing top rear air duct (S55 engine)

Carry out this repair only when the engine has cooled down.

Necessary preliminary work:

• Remove CARBON STRUT .
• Remove right-hand INTAKE SILENCER HOUSING .
• Remove TOP IGNITION COIL COVER .

Removal:

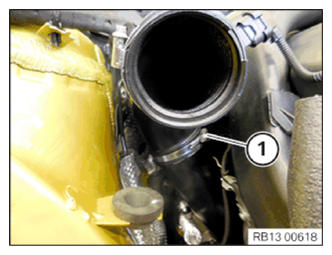

Release clamp (1) and remove air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install air duct and tighten clamp (1).

Tightening torque 13 71 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

• Install TOP IGNITION COIL COVER .
• Install right INTAKE FILTER HOUSING .
• Install CARBON STRUT .
