Removing and installing/replacing hydraulic valve (S55 engine)

Necessary preliminary tasks:

• Remove FRONT AIR DUCT .
• Remove right-hand INTAKE SILENCER HOUSING .
• Remove COOLANT PUMP .
• Have a cleaning cloth ready to catch escaping oil

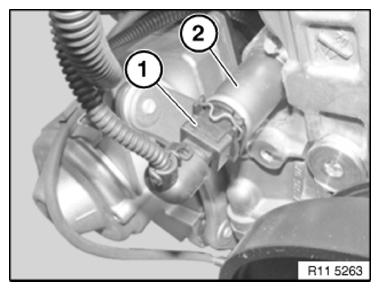

Detach connector (1) from hydraulic valve (2).

Illustration shows N55

Courtesy of BMW OF NORTH AMERICA, INC.

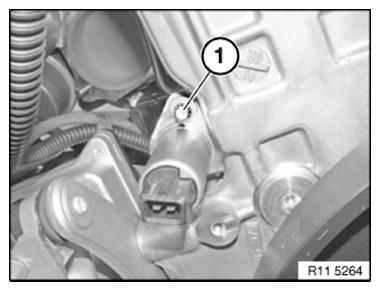

Release screw (1) and remove hydraulic valve.

Tightening torque: 11 41 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

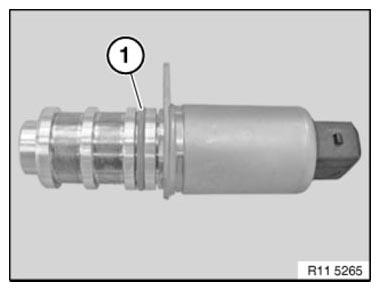

Replace O-ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of Digital Engine Electronics.

CHECK ENGINE OIL PRESSURE .

Diagnosis path:

• DME Digital Motor Electronics
• Complete vehicle
• Power train
• Engine electronics
• Engine oil
• Oil-pressure control
