Removing and installing/replacing coolant pump (S55 engine)

Recycling:

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

• Remove FAN COWL WITH ELECTRIC FAN .
• Remove the DRIVE BELT FOR THE COOLANT PUMP .

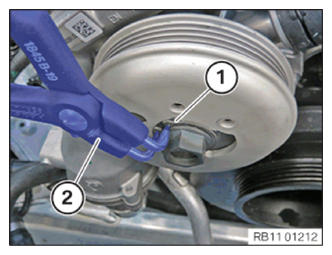

Use suitable pliers (2) to remove the circlip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

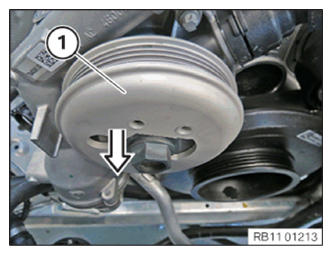

Remove the belt pulley (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

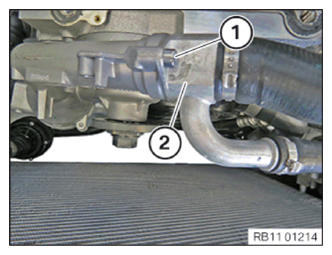

Release screws (1).

Tightening torque 11 51 2AZ .

Pull the coolant line (2) off the coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

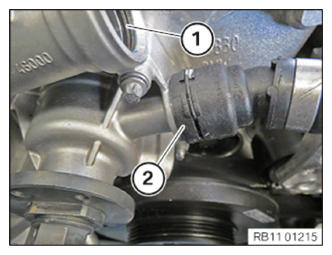

Installation note:

Replace O-ring (1).

Unlock the lock on the coolant hose (2).

Pull off coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

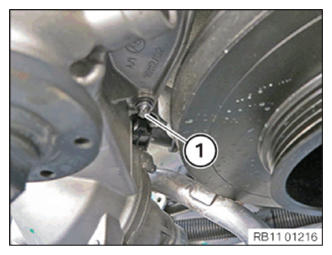

Release screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

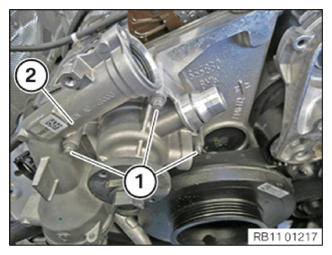

Release screws (1).

Tightening torque: 11 51 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

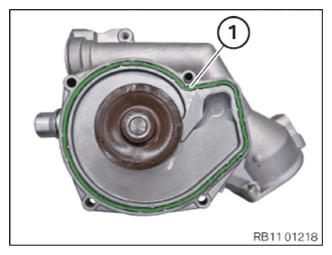

Installation note:

Replace gasket (1).

When replacing, remount the THERMOSTAT .

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

BLEEDING INSTRUCTIONS must be observed without fail.
