17 11 059 Removing and installing/replacing both module carriers with stone chip guard

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe SAFETY INSTRUCTIONS ON RAISING THE VEHICLE USING A VEHICLE HOIST .

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Follow NOTES FOR REPAIR WORK ON THE COOLING SYSTEM .

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work:

Refer to REMOVING INTAKE SILENCER HOUSING
Refer to REMOVING CLEAN AIR PIPE
Refer to REMOVING FAN COWL
Refer to REMOVING THE FRONT UNDERBODY PROTECTION
Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM
Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM
Refer to REMOVING CENTER FRONT PANEL
Refer to REMOVING THE RADIATOR
Refer to REMOVING THE LOW-TEMPERATURE COOLANT RADIATOR

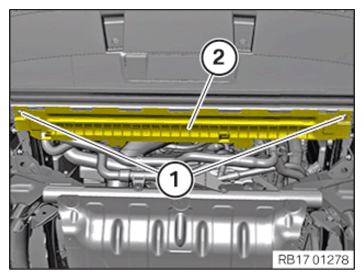

Loosen screws (1).
Remove the bottom cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

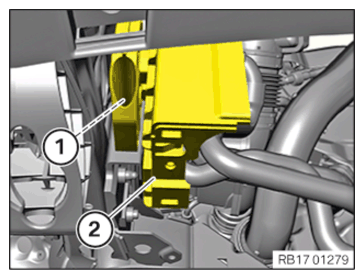

Loosen screw (1).
Disconnect the right module carrier (2) together with the cooler module mount and remove to the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

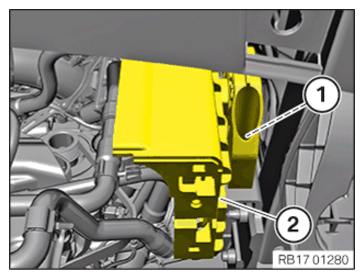

Loosen screw (1).
Disconnect the left module carrier (2) together with the cooler module mount and remove to the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

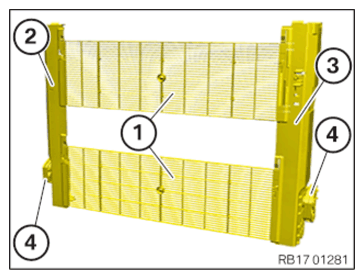

Install the top and bottom stone chip guard (1) on the new module carriers on the right (2) and left (3).
Mount the cooler module mounts (4) on the left and right on the module carrier.

Courtesy of BMW OF NORTH AMERICA, INC.

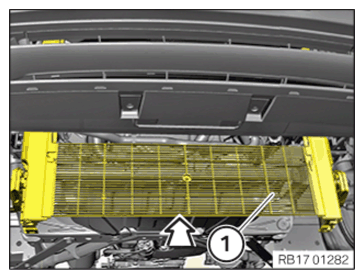

Feed in and install the stone chip guard (1) with the module carriers and the cooler module mounts from the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

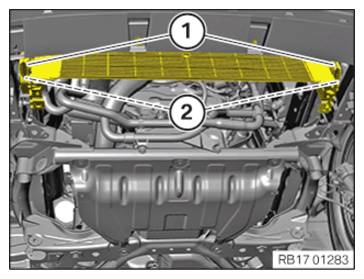

Attach the module carrier with the cooler module mounts (1) to the adapter plates of the front axle support.
Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION

Cooler module mount on the adapter plate

8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
Install the bottom cover (2).
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION

Cover, below on the module carrier

5.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Cooler module mount on the adapter plate
8 Nm

Cover, below on the module carrier
5.3 Nm

Follow-up work:

Refer to INSTALLING THE LOW-TEMPERATURE COOLANT RADIATOR
Refer to INSTALLING RADIATOR
Refer to INSTALLING CENTER FRONT PANEL
Refer to CONNECTING THE COOLANT HOSE TO THE RADIATOR
Refer to CONNECTING THE COOLANT HOSE TO THE RADIATOR OF THE LOW-TEMPERATURE COOLANT CIRCUIT
Refer to INSTALLING FAN COWL
Refer to INSTALLING CLEAN AIR PIPE
Refer to INSTALLING INTAKE SILENCER HOUSING
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM
Refer to BLEEDING THE HIGH-TEMPERATURE COOLANT SYSTEM
