Overview of wishbone, camber arm, trailing arm, toe arm and control arm

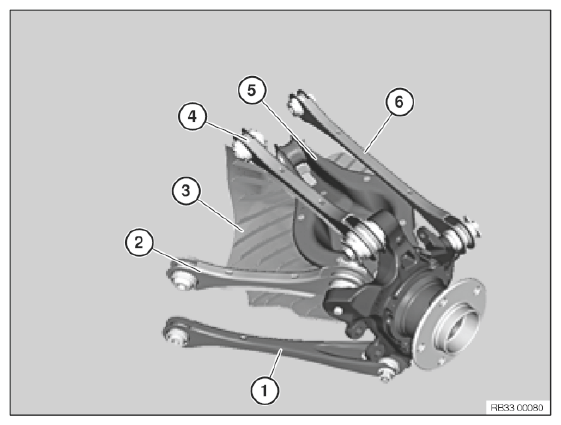

G14550497Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting procedure

  1. TRAILING ARM .
  2. TRACTION STRUT .
  3. CAMBER ARM COVER .
  4. WISHBONE .
  5. CAMBER ARM .
  6. TOE ARM
