Removing and installing transfer box (ATC 45L) (X6 M)

Special tools required:

• 00 2 030
• 23 4 050
• 2 413 317

Attention!

After completion of work, CHECKING TRANSMISSION FLUID LEVEL and top up if necessary.

Failure to comply with this requirement will result in serious damage to the transfer box!

Necessary preliminary tasks:

• Disconnect NEGATIVE BATTERY CABLE .
• Remove REAR UNDERBODY PROTECTION. .
• Remove left UNDERBODY PANELLING .
• Remove complete EXHAUST SYSTEM .
• Remove heat shields.

Removal:

Support transmission with special tools 00 2 030 and 23 4 050.

Courtesy of BMW OF NORTH AMERICA, INC.

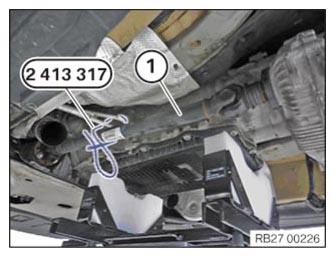

Tie up the front propeller shaft (1) using special tool 2 413 317.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove TRANSMISSION CROSS MEMBER .
• Partially remove PROPELLER SHAFT .

• Disconnect propeller shaft at transmission.
• Release center mount.
• Tie up propeller shaft to underbody.

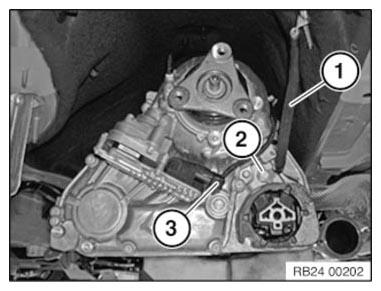

Release screw (2) and disconnect ground strap (1).

Disconnect the connector (3) from the control unit of the longitudinal torque distribution (transfer box).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw connection of transfer box.

Take off transfer box (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to dowel pin (1).

Grease dowel pin (1).

Apply a thin coat of grease to gearing.

Grease:  WEICON ANTI-SEIZE.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When positioning the transfer box on the transmission, insert the propeller shaft into the transfer box.

Mount and engage sealing cup (1) and let it rest against dust guard completely (2).

Courtesy of BMW OF NORTH AMERICA, INC.

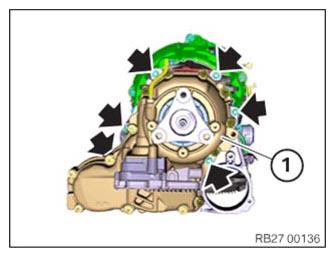

Position transfer box (1).

Tighten the screws.

Tightening torque 27 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position ground strap (1).

Tighten screw (2).

Tightening torque 27 10 4AZ .

Disconnect the connector (3) on the control unit of the longitudinal torque distribution (transfer box).

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the PROPELLER SHAFT .
• Install the TRANSMISSION CROSS MEMBER .

Remove special tool 2 413 317 from the front propeller shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Put special tools 00 2 030 and 23 4 050 to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install heat shields.
• Completely install the EXHAUST SYSTEM .
• Install left UNDERBODY PANELLING .
• Install the rear UNDERBODY PROTECTION .
• Connect BATTERY EARTH LEAD .
