Removing refitting/replacing rear engine undercover (X6 M)

Removal:

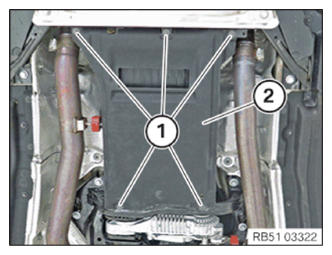

Undo screws (1) and remove engine undercover (2).

G15052893Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install underbody protection (2), center and tighten screws (1).

G15052893Courtesy of BMW OF NORTH AMERICA, INC.
