Replacing cross member for transmission mounting (X6 M)

Special tools required:

• 00 2 030
• 23 4 050

Necessary preliminary tasks:

• Remove EXHAUST SYSTEM .

Removal:

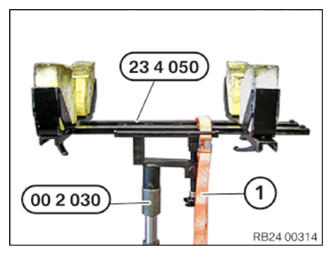

Support transmission with special tools 00 2 030, 23 4 050.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws.

Release screw (1).

Remove transmission cross member.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install transmission cross-member.

Insert screws and tighten.

Insert screw (1) and tighten.

Tightening torque 22 32 6/11AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove jack.
• Install EXHAUST SYSTEM .
