51 16 366 Removing and installing/replacing right glove box with housing

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Version with knee airbag:

Version without knee airbag:

Release screws (1).

Release trim panel (2) from clips (3).

Installation note:

Replace faulty clamps (3).

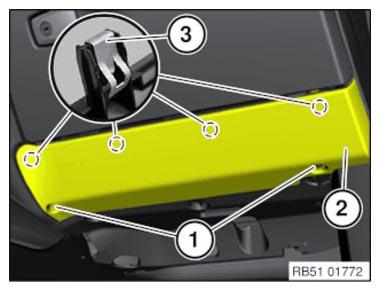

Fig 1: Identifying Trim Panel, Screws, And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from below.

Installation note:

Ensure the glove box is correctly seated (see arrow).

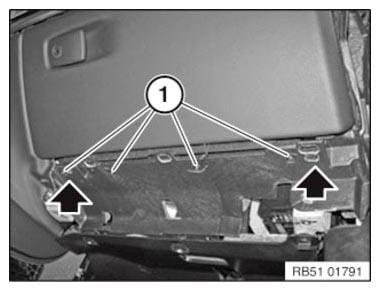

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Pull the glove box (3) outwards slightly and, if necessary, unfasten additional cable retainers and/or unplug electrical connectors.

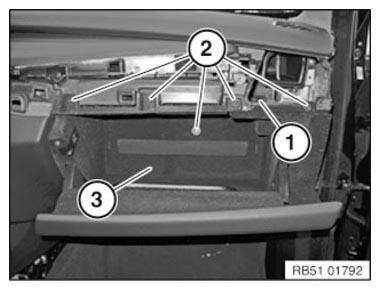

Fig 3: Identifying Glove Box, Screws, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
