63 31 150 Removing and installing/replacing glovebox light

Lever out glove box light (1) in direction of arrow.

Unlock plug connection and disconnect.

Remove glove box light (1).

Replacement:

Take note of the BULB TYPE , swap over BULB  if necessary.

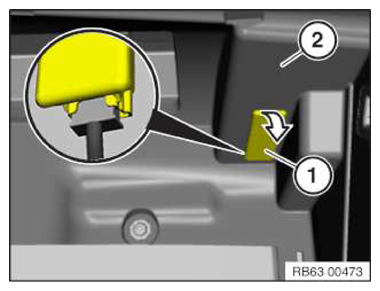

Fig 1: Removing Glove Box Light

Courtesy of BMW OF NORTH AMERICA, INC.
