64 22 136 Removing and installing/replacing right fresh air grille

Necessary preliminary tasks:

• Remove DECORATIVE STRIP FROM FRESH-AIR GRILLE
• Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT

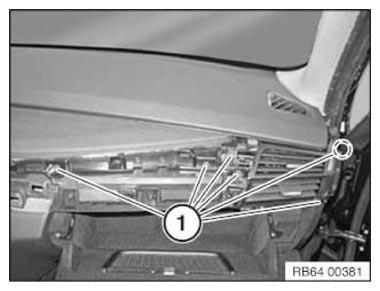

Release screws (1).

Fig 1: Identifying Fresh Air Grille Screws

Courtesy of BMW OF NORTH AMERICA, INC.

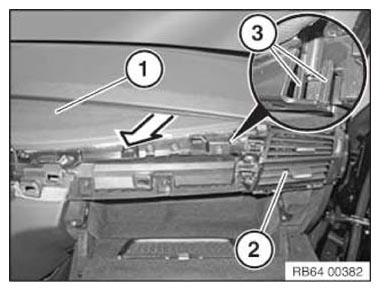

Pull cover (1) slightly in direction of arrow to the passenger compartment.

Carefully remove fresh air grille (2).

Installation note:

Guides (3) must be inserted correctly in respective pairs.

Fig 2: Pulling Cover

Courtesy of BMW OF NORTH AMERICA, INC.
