11 00 050 Removing and installing engine (N20 PHEV)

Special tools required:

11 0 000 .
11 7 310
11 8 680
13 5 281
13 5 282
72 15 8 108 670
13 5 161 .
13 5 162 .
32 1 270 .
00 9 030 .

WARNING: High-voltage system - danger to life
The following points must be strictly observed prior to starting work:

DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
Observe SAFETY INFORMATION for working with electric vehicles.

Necessary preliminary tasks:

Disconnect the BATTERY CABLE NEGATIVE TERMINAL .
Move engine compartment lid into SERVICE POSITION .
Remove the CATALYTIC CONVERTER .
Remove the TRANSMISSION .
Remove both output shafts. See REMOVING LEFT OUTPUT SHAFT and REMOVING RIGHT OUTPUT SHAFT .
Drain ENGINE OIL .
Remove top engine compartment PARTITION WALL .
Remove STRUT BRACE .
Remove INTAKE SILENCER HOUSING .
Remove BOTTOM CLEAN AIR PIPE .
Remove LEFT CHARGE AIR DUCT .
Remove RIGHT CHARGE-AIR DUCT .
Drain COOLANT .
Detach all coolant hoses from engine.
Remove COOLANT THERMOSTAT .
Evacuate AIR CONDITIONING .

Removal:

For removing and installing the engine, the towing hook 72 15 8 108 670 is required.

Screw towing hook onto cylinder head.

Fig 1: Identifying Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover (1).

Release nut underneath. Remove positive battery cable lead (2) from positive battery connection point.

Fig 2: Identifying Positive Battery Cable Lead And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release vacuum line (1) to vacuum pump.

Fig 3: Identifying Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the fuel line at the snap fastener (1).

Unlock tank ventilation line (2) and disconnect.

Fig 4: Identifying Fuel Line Fastener And Tank Ventilation Line Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Close off fuel line with special tool 13 5 161 .

Close off fuel line with special tool 13 5 162 .

Fig 5: Closing-Off Fuel Lines Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Take off holder (1).

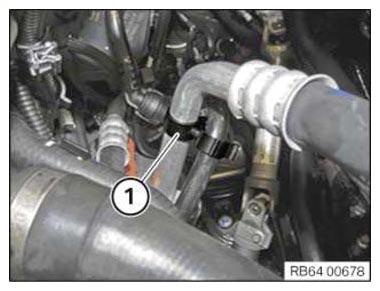

Fig 6: Identifying Holder

Courtesy of BMW OF NORTH AMERICA, INC.

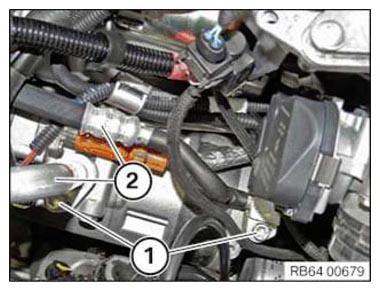

Release screws (1).

Remove refrigerant lines (2).

Tightening torque 64 52 1AZ .

IMPORTANT: Seal openings or lines on compressor with special tool 32 1 270 to prevent escape of media and dirt contamination.

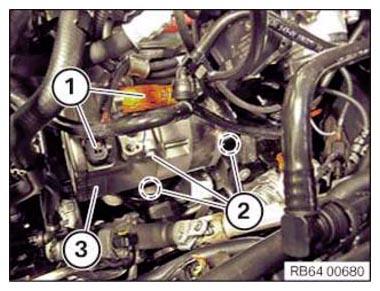

Fig 7: Identifying Refrigerant Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

IMPORTANT: Observe notes on UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS ON ELECTRIC VEHICLES .

Fig 8: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off connector (1) from DME control unit.

Place engine wiring harness to one side.

Fig 9: Identifying DME Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off connectors (1) to (3).

Securely attach engine wiring harness to engine.

Fig 10: Identifying Engine Wiring Harness Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right.

Tightening torque: 22 11 2AZ .

Fig 11: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic diagram:

Screw towing eye (1) into cylinder head.

Tightening torque 11 12 5AZ .

Attach special tool 11 0 000 to engine lifter.

Suspend special tool 11 0 000 only from designated mounting eyelets (2).

IMPORTANT: Note restrictions on steering shaft and firewall.

Fig 12: Attaching Special Tool (11 0 000) To Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine out with engine crane.

Installation:

IMPORTANT: Note restrictions on steering shaft and firewall.

Lift engine out with engine lifter.

Schematic diagram:

Tightening torque 11 12 5AZ .

Attach special tool 11 0 000 to engine lifter.

Fig 13: Attaching Special Tool (11 0 000) To Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Suspend special tool 11 0 000 only from designated mounting eyelets (2).

Tighten screws (1) on engine mount on left and right.

Tightening torque: 22 11 2AZ .

Fig 14: Identifying Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release the engine wiring harness on the engine.

Connect plug connectors (1 to 3).

Fig 15: Identifying Engine Wiring Harness Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Plug in connector (1) from the DME control unit.

Fig 16: Identifying DME Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).

Fig 17: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Position refrigerant lines (2).

Tighten down screws (1).

Tightening torque 64 52 1AZ .

Fig 18: Identifying Refrigerant Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder (1).

Fig 19: Identifying Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retainer 13 5 161 of fuel line.

Remove retainer 13 5 162 of fuel line.

Fig 20: Closing-Off Fuel Lines Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the fuel line at the snap fastener (1).

Plug on tank ventilation lines (2), lock must snap audibly into place.

Fig 21: Identifying Fuel Line Fastener And Tank Ventilation Line Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Connect vacuum line (1) to the vacuum pump, lock must snap audibly into place.

Fig 22: Identifying Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Connect positive battery line (2) to the positive battery connection point.

Close cover (1).

Fig 23: Identifying Positive Battery Cable Lead And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew towing hook 72 15 8 108 670out of cylinder head.

Fig 24: Identifying Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Top up coolant. See BLEEDING/FILLING HIGH TEMPERATURE-COOLANT CIRCUIT WITH VACUUM-FILLING UNIT and CHECKING COOLING SYSTEM FOR WATERTIGHTNESS .

Assemble engine.

Check function of DME.
