11 00... Engine oil change (N20 PHEV)
Special tools required:
- 11 9 240 .
- 83 30 0 493 936
- Observe SAFETY INFORMATION for working with electric vehicles.
Carry out work on the vehicle only when wearing oil- and heat-resistant protective gloves including forearm protection, face guard and protective apron.
Carry out engine oil service only when the engine is at operating temperature.
Observe the exact engine oil filling capacity.
Overfilling the engine with engine oil will result in engine damage .
Risk of damage!
Protect the belt drive and alternator against contamination.
Cover with suitable materials.
Recycling:
Catch and dispose of drained engine oil in a suitable collecting vessel.
Observe country-specific waste disposal regulations.
Removal:
Necessary preliminary tasks:
- Remove REINFORCEMENT PLATE .

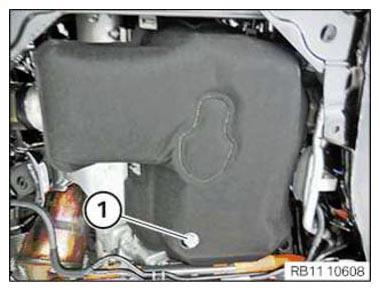

Release oil filter cover (1) with special tool 11 9 240 .
Engine oil flows out of the oil filter housing and back into the oil sump.
Order number: 83 30 0 493 936
Open oil drain plug (1) of oil sump and drain engine oil.
Installation:
Tighten oil drain plug (1) of oil sump.
Installation note:
Replace sealing ring.
Tightening torque 11 13 1AZ .
Installation note:
Replace oil filter element (2) and sealing rings (1).
Secure oil filter cover with special tool 11 9 240 .
Tightening torque 11 42 1AZ .
Start engine and run at idle speed.
Check the Check Control message in the instrument cluster Check Control.
Attention!
Check Control message (red oil can) is only displayed if oil pressure drops below minimum permissible oil pressure for longer than approx. 8 seconds.
Switch off engine.
Check oil filter cover and oil drain plug of oil sump for tightness.
Assemble engine.
- Install REINFORCEMENT PLATE .
Recommendation: Checking oil level:
- Park vehicle on a horizontal surface
- Allow engine to run at operating temperature for three minutes with increased engine speed (approx. 1100 RPM)
- Read off oil level in instrument cluster or on control display
- Top up engine oil if necessary
