Removing and installing or replacing alternator (S63 B44 T 2) (X5 M)

Necessary preliminary work:

Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove ACOUSTIC COVER .
Remove front left WHEEL ARCH COVER (front section).
Remove PRESSURE SENSOR from charge air cooler at left.
Release DRIVE BELT for alternator from alternator.
Drain COOLANT .

Attention!

Risk of damage!

Cover radiator.

Removal:

Release clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps (1).

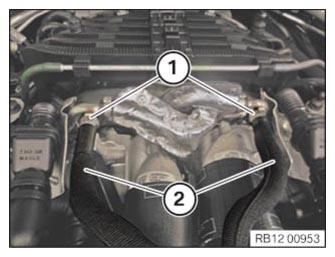

Detach coolant hoses (2) from exhaust turbochargers.

Courtesy of BMW OF NORTH AMERICA, INC.

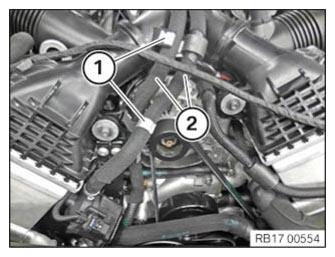

Detach coolant hoses (2) from clamps (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) from right charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) from left charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

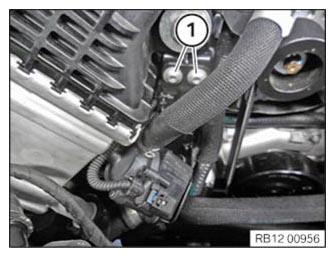

Release screws (1).

Place holder for auxiliary coolant pump to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and place oil reservoir for hydraulic pump (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1) at bottom from throttle body.

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1) and detach coolant hose from charge air cooler.

Unlock and detach coolant hose (2).

Catch and dispose of escaping coolant.

Detach tank vent valve (3) from charge air cooler and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release and detach the coolant hose (1) at bottom from left charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Release and detach coolant hose (1) at left from radiator.

Set coolant hose (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach left charge air cooler (1) forward from exhaust turbocharger.

Feed charge air cooler (1) out upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach right charge air cooler (1) forward only from exhaust turbocharger.

Partly detach charge air cooler at right (1), do, not remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

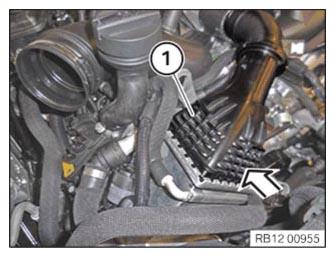

Release nut at bottom of cover (1).

Remove positive battery cable from alternator and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

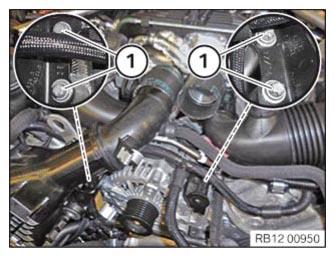

Release bolts (1) at left and right from alternator.

Courtesy of BMW OF NORTH AMERICA, INC.

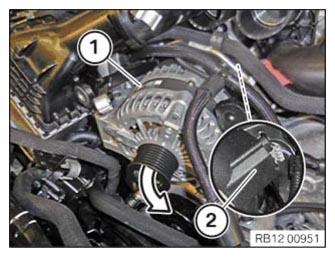

Pull alternator (1) forward slightly until the connector (2) is accessible.

Unlock connector (2) and remove.

Feed out alternator (1) forwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in alternator (1) and install.

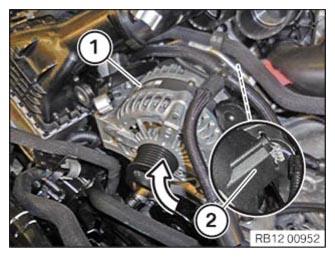

Fit connector (2) to alternator and lock.

Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 12 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect positive battery cable to alternator.

Tighten nut on positive battery cable.

Tightening torque 12 41 1AZ .

Reinstall cover (1) without fail risk of short circuiting!

Courtesy of BMW OF NORTH AMERICA, INC.

Connect charge air cooler at right (1) to exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in charge air cooler at left (1).

Connect left charge air cooler (1) to throttle body and exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant hose (1) at left to radiator.

The coolant hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant hose (1) at bottom to charge air cooler at left.

The coolant hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Connect coolant hose to charge air cooler and fasten with clamp (1).

Connect and lock coolant hose (2).

The coolant hose (2) must engage audibly.

Mount tank vent valve (3) to charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten clamp (1) at bottom on throttle body.

Tightening torque 13 71 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil reservoir for hydraulic pump (2) and tighten nuts (1).

Tightening torque 32 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder for auxiliary coolant pump and fasten with bolts (1).

Tighten down screws (1).

Tightening torque 11 51 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolt (1) on left charge air cooler.

Tightening torque 13 71 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolt (1) on right charge air cooler.

Tightening torque 13 71 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten coolant hoses (2) to clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace clamps (1).

Connect coolant hoses (2) to exhaust turbocharger and fasten with clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Attach charge air hose between charge air cooler and exhaust turbocharger using clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Attach charge air hose between charge air cooler and exhaust turbocharger using clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install the ACOUSTIC COVER .
Install PRESSURE SENSOR onto charge air cooler at left.
Install front WHEEL ARCH COVER (front section), left.
Mount DRIVE BELT FOR ALTERNATOR onto alternator.
Top up COOLANT and vent cooling system.
Top up COOLANT FOR CHARGE AIR COOLER and bleed.
Connect BATTERY EARTH LEAD .
