Removing and installing/replacing front wheel arch cover (front section) on the left or right (X5 M)
Necessary preliminary tasks:
- Remove FRONT WHEEL .
- Remove TRIM ON FRONT WHEEL ARCH .
NOTE:
Work shown on the X5 xDrive 50i by way of example; deviations are possible in other models.

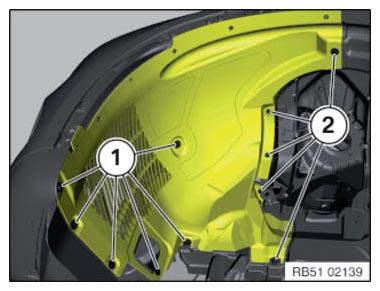

Release screws (1) and screws (2).
Feed wheel arch cover out downwards.
IMPORTANT:

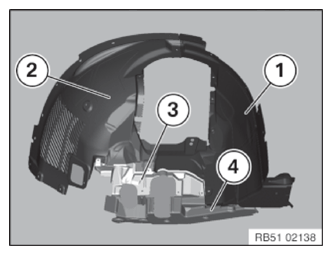

Make sure all covers in wheel arch are correctly seated in relation to each other:
- Front cover (2) overlaps rear cover (1)
- Cover (3) overlaps covers (1, 2, 4).
