Removing and installing/replacing acoustic cover (S63T2) (X5 M)

Removal:

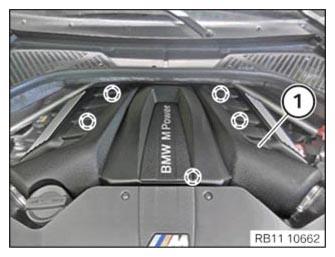

Unclip the acoustic cover (1) upwards out of the holders in the highlighted areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

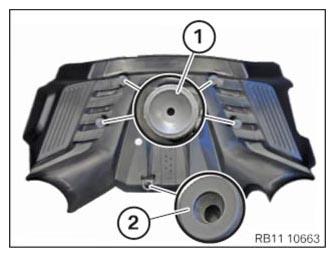

Check the acoustic cover for the correct installation of all the rubber plugs (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip the acoustic cover (1) in the holder (highlighted areas).

Courtesy of BMW OF NORTH AMERICA, INC.
